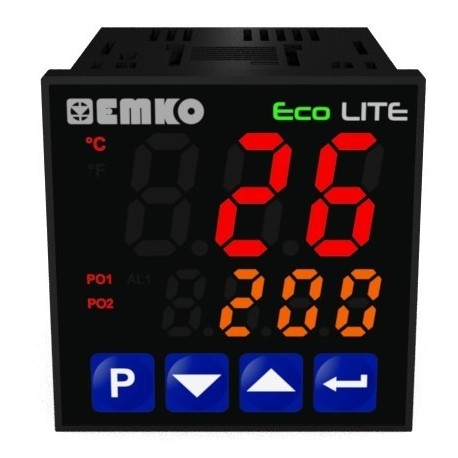

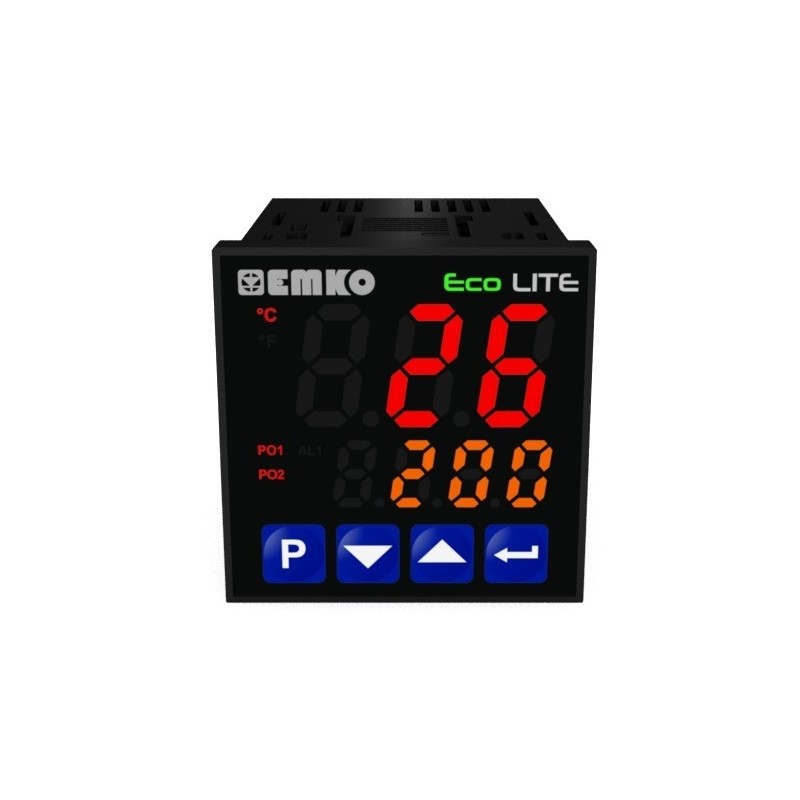

ECO LITE On-Off Temperature Control Unit
TC (J,K,R,S,T Input Types) and
RTD inputs selectable by parameter
Low Power Consumption, Energy
saving and Environmentally Friendly with 2VA
Saving and Recovery of user parameters
Return to Factory Settings
3 Digits Process (PV) and 4 Digits Set (SV) display
ON-OFF control form
Selectable heating and cooling function
Selectable temperature offset value
Operation type selection with hysteresis
Minimum pulling time adjustment
for control outputs
| eatures | Descriptions |
| Physical Features | |
| Dimensions | 48 mm x 48 mm 86,5 mm |
| Protection Class | IP65 at front, IP20 at rear |
| Installation | Fixed Installation |
| Storage / Operating Temperature | 0°C...50°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 100-240Vac 50/60Hz 115Vac (±%15) 50/60Hz 230Vac (±%15) 50/60Hz 24Vac/dc (±%15) 50/60Hz 24Vac (±%15) 50/60Hz 10-30Vdc |
| Sensor Inputs | TC, RTD Thermocouple (TC): J, K, R, S, T and L(IEC584.1)(ITS90) thermoresistance (RTD): Cu-50 and PT-100 (IEC751)(ITS90) |
| Optional Sensor Inputs | |
| Scale | Fe CuNi -199°C...900°C / -19,9°C...99.9°C Ni CrNi -199°C...999°C / -19,9°C...99.9°C PT13%RhPt 0°C...999°C / 0,0°C...99.9°C PT10%RhPt 0°C...999°C / 0,0°C...99.9°C Cu,CuNi -199°C...400°C / -19,9°C...99.9°C Ni CrNo -150°C...800°C / -19,9°C...99.9°C Cu50 -199°C...200°C / -19,9°C...99.9°C PT100 -199°C...650°C / -19,9°C...99.9°C |
| Accuracy | Scale ± %0.25 |
| Output | |
| Relay Output | Relay (5A@250V ac at Resistive Load) Relay (5A@250V ac at Resistive Load) |
| SSR Output | |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | On/Off |
| Reading Frequency | 0.1 second |
| Communication Protocols | |
| Approvals | CE |
