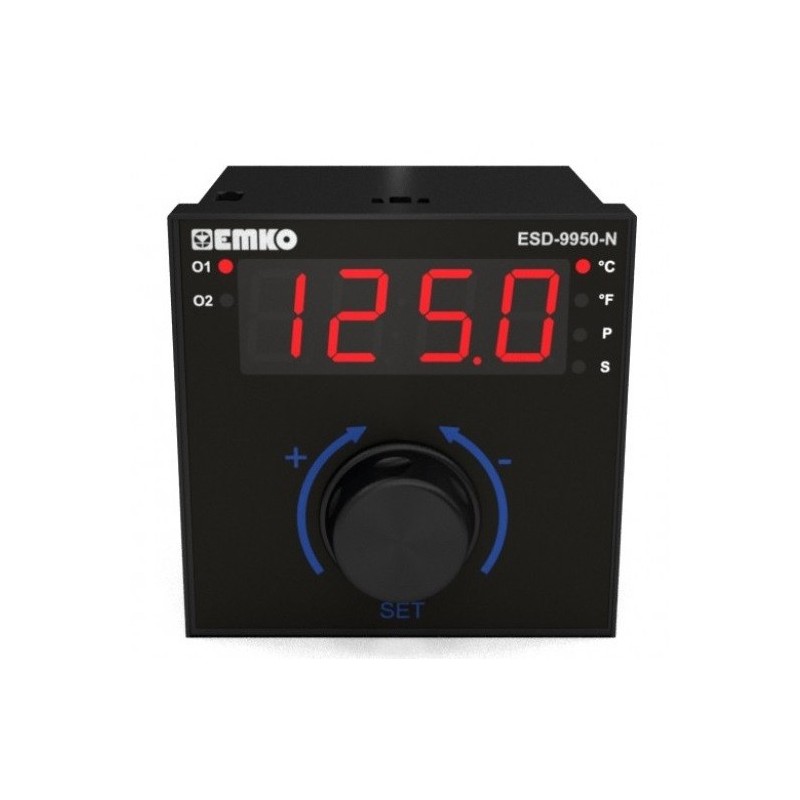

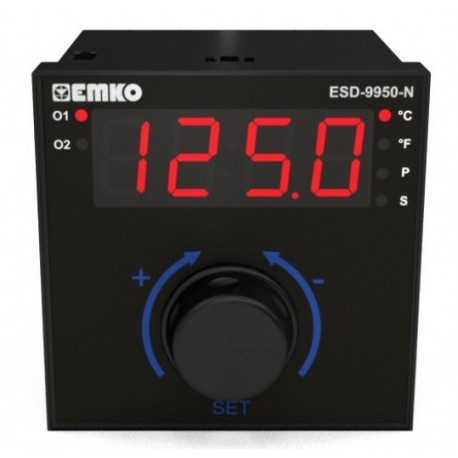

ESD-9950-N Analogue Temperature Controller with digital indicator View larger

ESD-9950-N Analogue Temperature Controller with digital indicator

New product

More info

ESD-9950-N Analogue Temperature Controller with digital indicator

Adjustable temperature offset
Programmable control and alarm functions for control outputs
Programmable ON-OFF, P, PI, PD, PID control forms
With Auto Tune / Self Tune operation, the PID coefficients
adaptation to the system
4 Digits display
J, K, R, S type Thermocouple Input or
2 or 3 wire PT 100 Input

Features Descriptions
Physical Features
Dimensions 96 x 96 mm x 100mm
Protection Class IP65 at front, IP20 at rear
Installation Fixed Installation
Storage / Operating Temperature 0...50ºC
Storage / Operating Humidity 90 % max. (None condensing)
Electrical Features
Supply Voltage and Power 230 Vac (+%15) 50/60 Hz. 3 VA
115 Vac(+%15) 50/60 Hz. 3 VA
24 Vac (+%15) 50/60 Hz. 3 VA
24 Vac/Vdc (+%15) 50/60 Hz. 3 VA
10 - 30 Vdc
Sensor Inputs ''J''Fe,Cu,Ni
''K''Ni,Cr
''R''Pt13%RhPt
''S''Pt10%RhPt
PT-100
Optional Sensor Inputs
Scale Fe CuNi -200°C...900°C
NiCr -200°C...1300°C
Pt13%RhPt 0°C...1700°C
Pt10%RhPt 0°C...1700°C
PT 100 -200ºC,650ºC
Accuracy ± 0.25% of scale for thermocouple and thermoresistance.
Output
Relay Output 7A@250 Vac at resistive load
7A@250 Vac at resistive load (Alarm Output)
SSR Output Maximum 10mA, Maks. 17Vdc
Analogue Output
Optional Outputs
Control
Control Form ON/OFF, P, PI, PD veya PID (Control form can be
programmed by the user.
Reading Frequency 10 readings per second
Communication Protocols
Approvals CE
