> >>PIDQUADRO 4 Channel PID Controller

Measurement Control Devices

Information

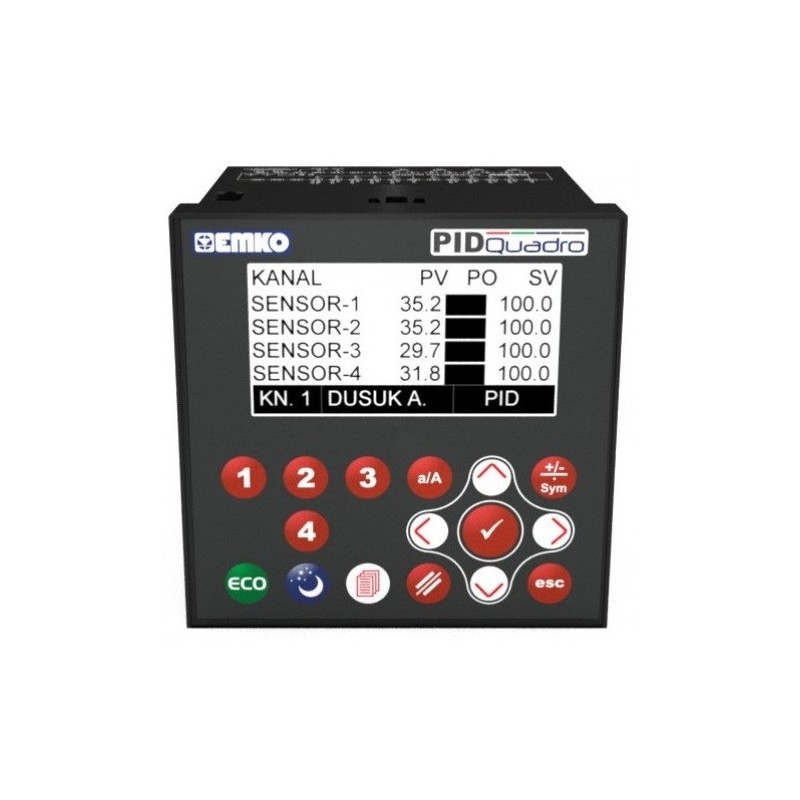

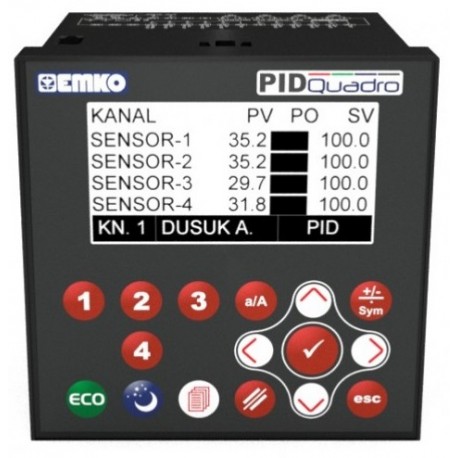

PIDQUADRO 4 Channel PID Controller View larger

PIDQUADRO 4 Channel PID Controller

New product

More info

PIDQUADRO 4 Channel PID Controller

Auto-Tuning and Self-Tuning
(Automatic calculations of PID parameters)
Data Logging to USB Flash Memory
Soft-Start (Ramp action during power on) specification
3 Different alarm types for each channel
(High, Low and Band Alarms)
128 x 64 Graphical LCD display
4 Thermocouple (J, K, L, R or S type) sensor inputs
Configurable P, PI, PD and PID control forms
Relay or (pnp “source”) transistor outputs
Operating with Real Time Clock (RTC)
ModBus RTU communication protocol
(Optional RS-232, RS-485 and Ethernet communication)

Features Descriptions
Physical Features
Dimensions 96 mm x 96 mm 96 mm
Protection Class NEMA 4X (IP65 at front, IP20 at rear)
Installation Fixed Installation
Storage / Operating Temperature 0...50°C
Storage / Operating Humidity 90 % max. (None condensing)
Electrical Features
Supply Voltage and Power 100 - 240 Vac (-%15 / +%10 ) 50/60 Hz. 7 VA
24 Vac (-%15 / +%10 ) 50/60 Hz. 7 VA
24 Vdc (-%15 / +%10 ) 7 W
Sensor Inputs Termokupl J ,K, R ,S (IEC584.1)(ITS90), L (DIN43710)PT-100 (IEC751)(ITS90)
PT-100 (IEC751)(ITS90)
Optional Sensor Inputs
Scale Termokupl için -100℃...1700℃
PT-100 için -200℃...650℃
Accuracy ± % 0,25 of full scale
Output
Relay Outputı 5A@250 Vac at resistive load
PNP (source) type transistor output ( Max. 1A @24VDC )
SSR Outputı
Analogue Output
Optional Outputs
Control
Control Form PID
Reading Frequency 1400 ms
Communication Protocols RS-485 (Modbus RTU) "500Vac isolation"
Ethernet (Modbus RTU Over TCP ve Modbus RTU TCP) "1500Vac isolation"
USB 2.0 (Data loggin into the flash drive.)
Approvals GOST-R, CE
