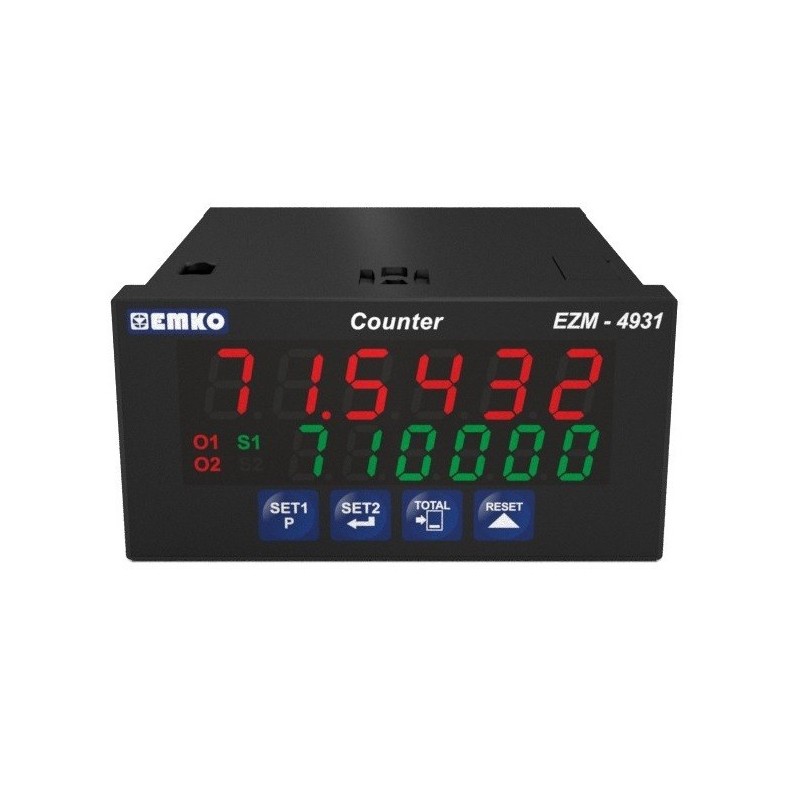

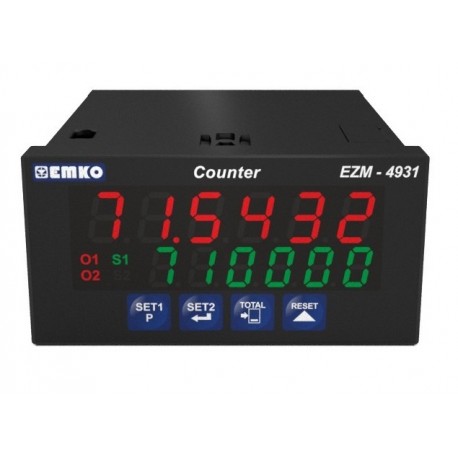

EZM-4931 200 KHZ Programmable High Speed Counter
6 digits Process (PV) and 6 digits Set (SV) Value Display
Operation with 2 Set Value
Reset , Pause and ChA-ChB Counting Inputs
Operation with Automatic and Manual Reset
NPN/PNP input Types
x1 / x2 / x4 Phase Shifting Property
Multiplication Coefficient, Division Coefficient and Point
Position
Parametric , Two point (Low Scale - High Scale) and
Multiplication - Division Coefficient
RS-232 Serial Communication with Modbus RTU Protocol
Input Frequency Max. 200kHz
Max. Input Frequency Selection
| eatures | Descriptions |
| Physical Features | |
| Dimensions | 96 mm x 48 mm 86,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | 0...50ºC |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 230 Vac (-15%, +10%) 50/60 Hz. 2.3 VA 115 Vac(-15%, +10%) 50/60 Hz. 2.3 VA 24 Vac(-15%, +10%) 50/60 Hz. 2.3 VA |
| Sensor Inputs | 12 Vdc 5 Vdc |
| Optional Sensor Inputs | |
| Scale | |
| Accuracy | |
| Output | |
| Relay Output | 5A@250 Vac at resistive load |
| SSR Output | Maks. 14mA, 10Vdc |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | |
| Reading Frequency | |
| Communication Protocols | |
| Approvals | CE, EAC |
