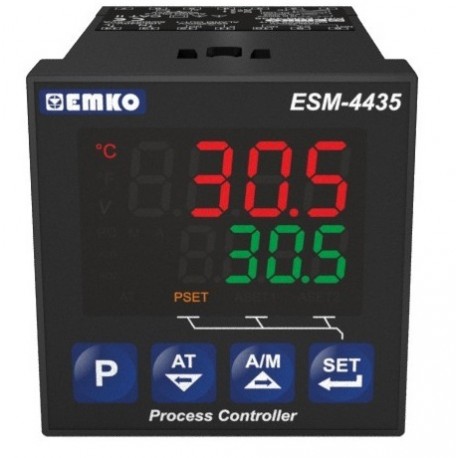

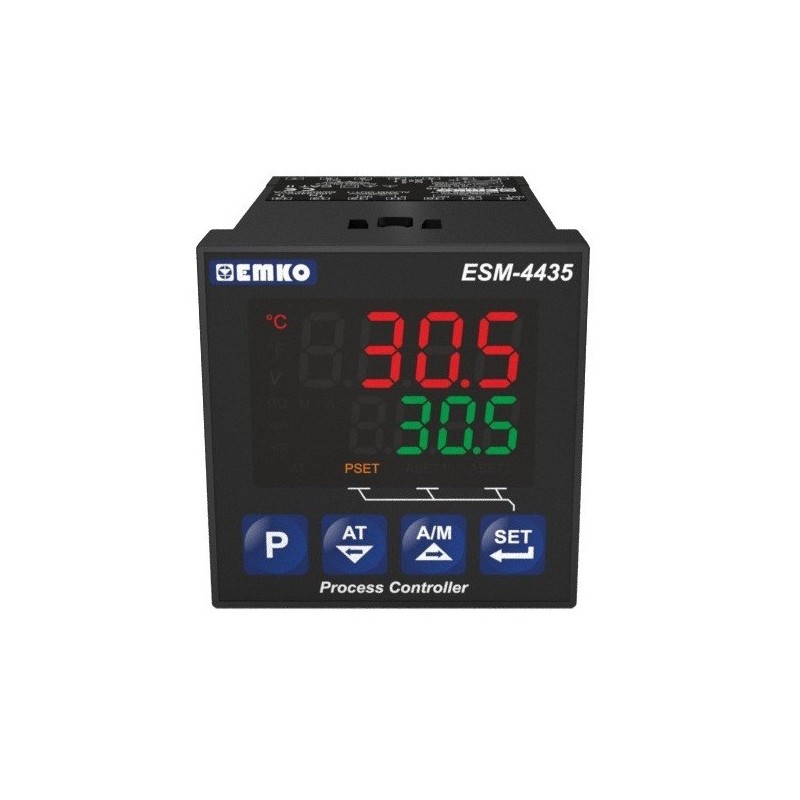

ESM-4435 Universal Input, Dual Set PID Process Controller View larger

ESM-4435 Universal Input, Dual Set PID Process Controller

New product

More info

ESM-4435 Universal Input, Dual Set PID Process Controller

Universal process input (TC, RTD, mVdc, Vdc, mAdc)
Dual or multi point calibration for dc Voltage/Current input
Bumpless transfer
Auto-tune ve Self-tune PID
4 Digits process (PV) and 4 Digits set (SV) display
Configurable ON/OFF, P, PI, PD, and PID control forms
Manual/Automatic mode selection for control outputs
Programmable heating, cooling and alarm
functions for control outputs

Features Descriptions
Physical Features
Dimensions 48 mm x 48 mm 87,5 mm
Protection Class IP65 at front, IP20 at rear
Installation Fixed Installation
Storage / Operating Temperature 0...50ºC
Storage / Operating Humidity 90 % max. (None condensing)
Electrical Features
Supply Voltage and Power 100-240 Vac (-15%,+10%) 50/60 Hz. 6 VA
24 Vac (-15%,+10%) 50/60 Hz. 6 VA
24 Vdc (-15%,+10%) 6 W
Sensor Inputs ''J''Fe,Cu,Ni
''K''Ni,Cr
''R''Pt13%RhPt
''S''Pt10%RhPt
PT-100
Optional Sensor Inputs
Scale Fe CuNi -200°C...900°C
NiCr -200°C...1300°C
Pt13%RhPt 0°C...1700°C
Pt10%RhPt 0°C...1700°C
PT 100 -200ºC,650ºC
Accuracy ± 0,25% of full scale for Thermocouple ,Thermoresistance, and Voltage
Output
Relay Output (2x) 5A@250 Vac at resistive load
SSR Output 15mA@15V (maximum)
Analogue Output
Optional Outputs
Control
Control Form On / Off, P, PI, PD, PID
Reading Frequency 10 readings per second
Communication Protocols
Approvals CE
