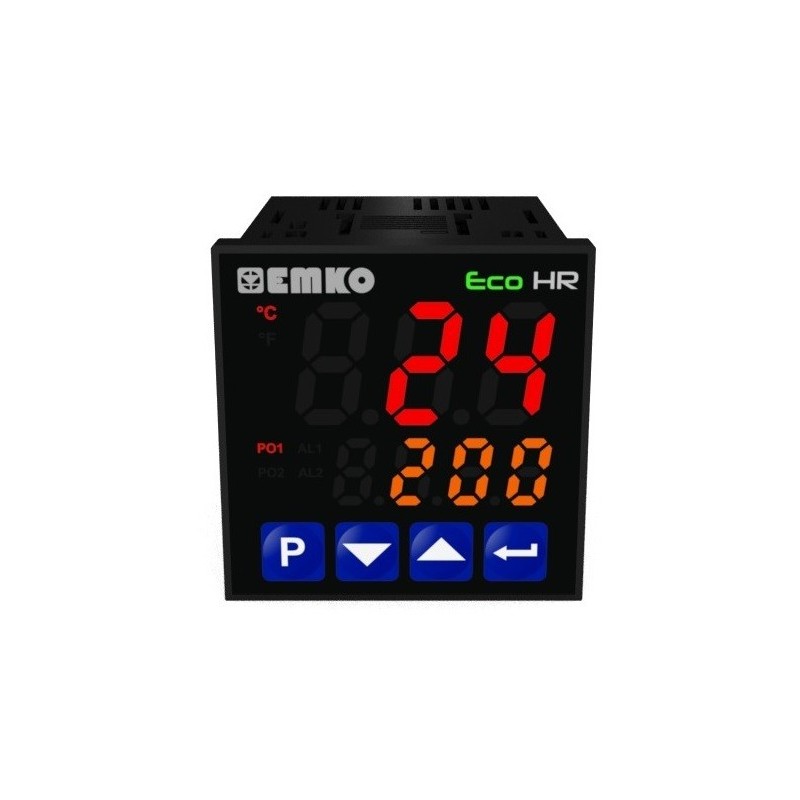

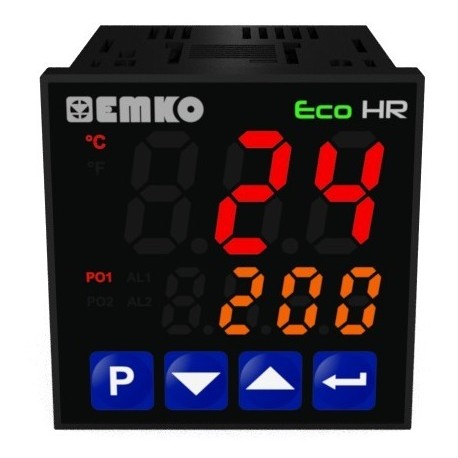

ECO HR PID Hot-Runner Control Unit View larger

ECO HR PID Hot-Runner Control Unit

New product

More info

ECO HR PID Hot-Runner Control Unit

High Resolution Sensitive PID control
TC (J,K,R,S,T Input Types, PT-100) selectable
by parameter
Low Power Consumption, Energy saving and
Environmentally Friendly with 2VA
Activate 2nd Set Value by front panel
Saving and Recovery of user parameters
Return to Factory Settings
Digital or RS-485 input for activate the 2nd
Set Value (Optional)
3 Digits Process (PV) and 4 Digits Set (SV) display
Programmable ON-OFF, P, PI, PD, PID control forms
Adaptation of PID Coefficients to the system
RS-485 Modbus (RTU) communication (Optional)

Features Descriptions
Physical Features
Dimensions 48 mm x 48 mm 86,5 mm
Protection Class IP65 at front, IP20 at rear
Installation Fixed Installation
Storage / Operating Temperature 0°C...50°C
Storage / Operating Humidity 90 % max. (None condensing)
Electrical Features
Supply Voltage and Power 100-240Vac 50/60Hz
115Vac (±%15) 50/60Hz
230Vac (±%15) 50/60Hz
24Vac/dc (±%15) 50/60Hz
24Vac (±%15) 50/60Hz
10-30Vdc
Sensor Inputs TC, RTDThermocouple (TC): J, K, R, S veT(IEC584.1)(ITS90)
thermoresistance(RTD) PT-100 (IEC751)(ITS90)
Optional Sensor Inputs
Scale Fe CuNi -200°C,900°C
NiCr Ni -200°C,1300°C
Pt13%Rh 0°C,1700°C
Pt10%Rh 0°C,1700°C
Cu CuNi -200°C,400°C
PT 100 -200°C,650°C
PT 100 -199.9°C,650.0°C
Accuracy Scale ± %0.50
Output
Relay Output Relay (5A@250Vac at Resistive Load)
Relay (5A@250V ac at Resistive Load) (Alarm Output)
SSR Output Maximum 10 mA @ 12 Vdc
Analogue Output
Optional Outputs
Control
Control Form Programmable On / Off, P, PI, PD, and PID
Reading Frequency 10 readings per second
Communication Protocols
Approvals CE
