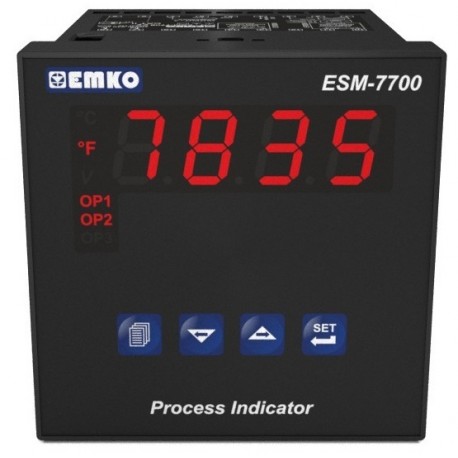

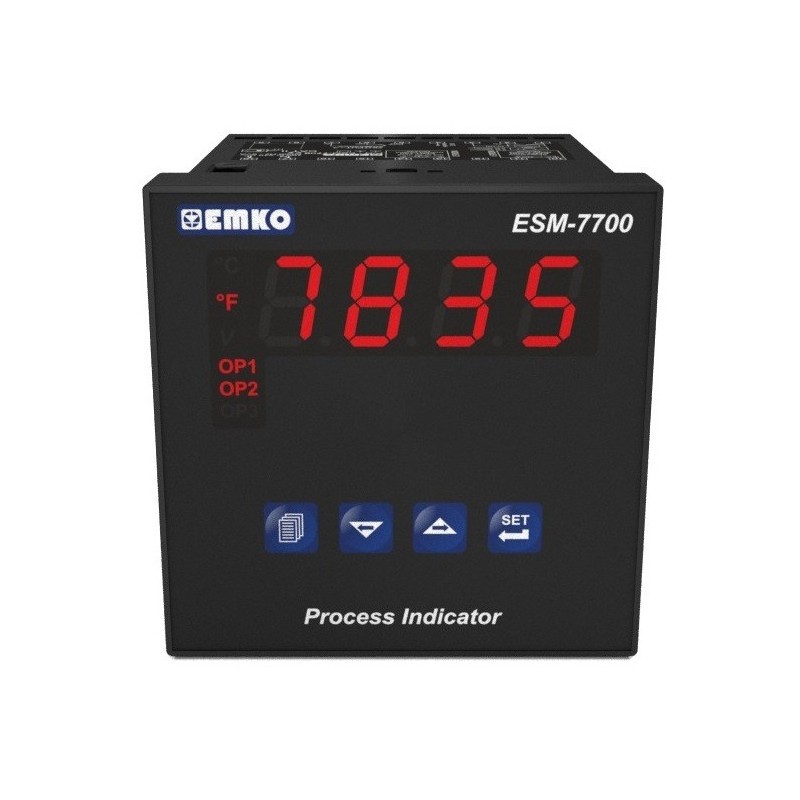

ESM-7700 "Smart Output Module" Process Indicator
ESM-XX00
Smart Output Module System
Retransmission of Process Value or Process Control by using
0/4...20 mAdc Current Output Module
Dual or multi point calibration for dc Voltage/Current input
4 Digit process (PV) display
Universal process input (TC, RTD, mVdc, Vdc, mAdc)
Programmable Alarm functions
RS-232 (standart) or RS-485(Optional) serial
communication with Modbus RTU protocol
| Features | Descriptions |
| Physical Features | |
| Dimensions | 72 mm x 72 mm 87,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | 0...50°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 100-240 V ac (-15%,+10%) 50/60 Hz. 6 VA 24 Vac (-15%,+10%) 50/60 Hz. 6 VA 24 Vdc (-15%,+10%) 6 W |
| Sensor Inputs | Universal Input TC, RTD, Voltage/Current (dc) Selectable by configuration parameters L (DIN43710), J, K, R, T, S, B, E, N (IEC584.1) (ITS90) PT100 (IEC751) (ITS90) |
| Optional Sensor Inputs | |
| Scale | |
| Accuracy | ± 0,25% of full scale for Thermocouple ,Thermoresistance, and Voltage. |
| Output | |
| Relay Outputı | 5A@250 Vac at resistive load |
| SSR Outputı | |
| Analogue Output | |
| Optional Outputs | EM0-400 Relay Output Module (3A@250V) EM0-410 SSR Output Module (20mA@18V) EM0-420 Digital (Transistor) Output Module (40mA@18V) EM0-430 0/4-20mA Current Output Module |
| Control | |
| Control Form | On/Off |
| Reading Frequency | 3 readings per second |
| Communication Protocols | MODBUS-RTU |
| Approvals | UL Recognized Component (Fwith No : E 254103), GOST-R, CE |
