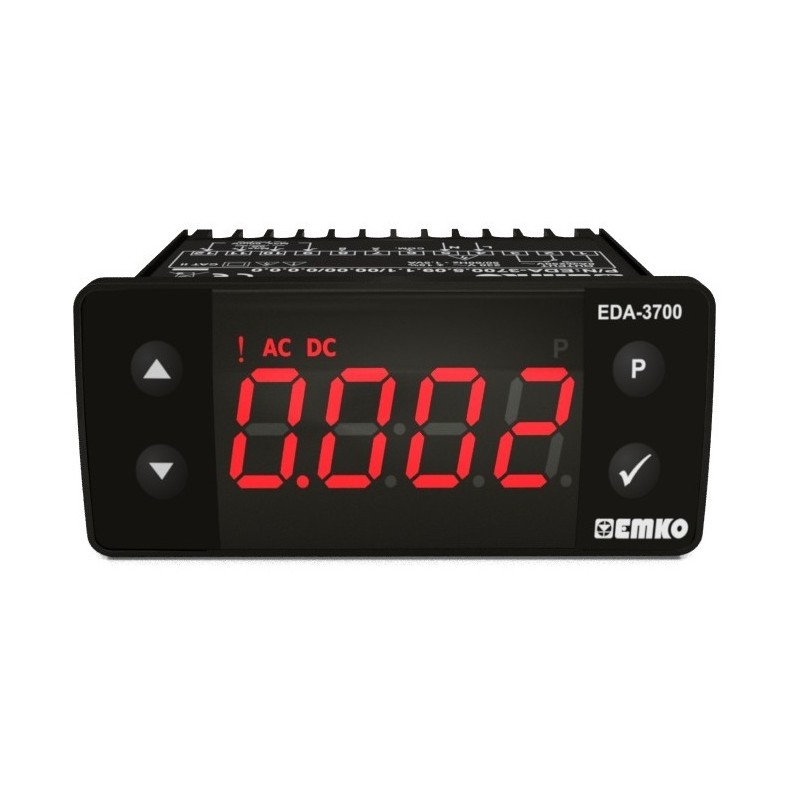

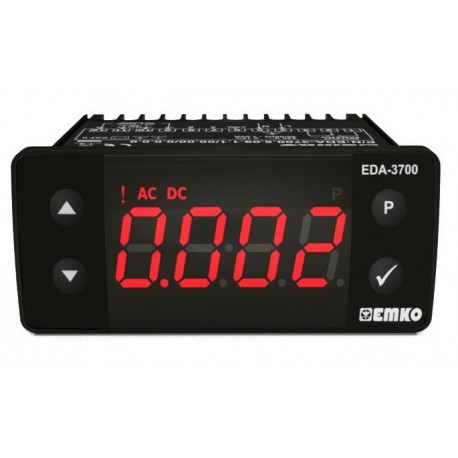

EDA-3700 Process Indicator
AC, DC or True RMS measuring feature
Easily changeable from front panel
5A or 60 mV AC, DC, AC/DC input
Programmable scale from 5A to 9999A
Alarm parameters
Password protection for programming mode
Having CE mark according to European Norms
Remote access,data collecting and
controlling with Modbus RTU (Optional)
| Features | Descriptions |
| Physical Features | |
| Dimensions | 76 mm x 34.5 mm x71 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | 30 °C with +80 °C / -20 °C with +70°C between |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 230 Vac (-15%,+10%) 50/60 Hz. 1,5 VA 115 Vac (-15%,+10%) 50/60 Hz. 1,5 VA 24 Vac (-15%,+10%) 50/60 Hz. 1,5 VA 100...240Vac (%15;+%10) 50/60 Hz 10...30 Vdc |
| Sensor Inputs | |
| Optional Sensor Inputs | |
| Scale | AC ve RMS 0 - 9999 DC (-1999) - 9999 |
| Accuracy | ±% 0,1 of full scale |
| Output | |
| Relay Outputı | Resistive load 8A @ 250Vac Alarm output) |
| SSR Outputı | |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | On/Off |
| Reading Frequency | According to parameter value |
| Communication Protocols | |
| Approvals | CE, EAC |
