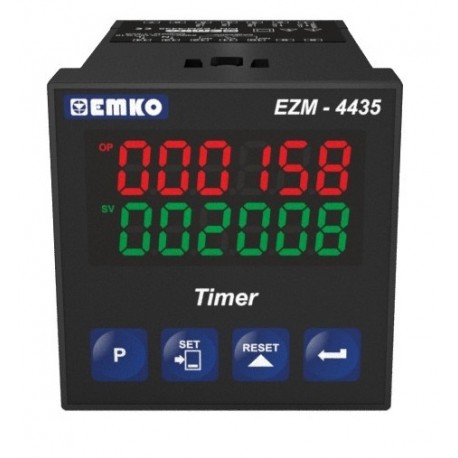

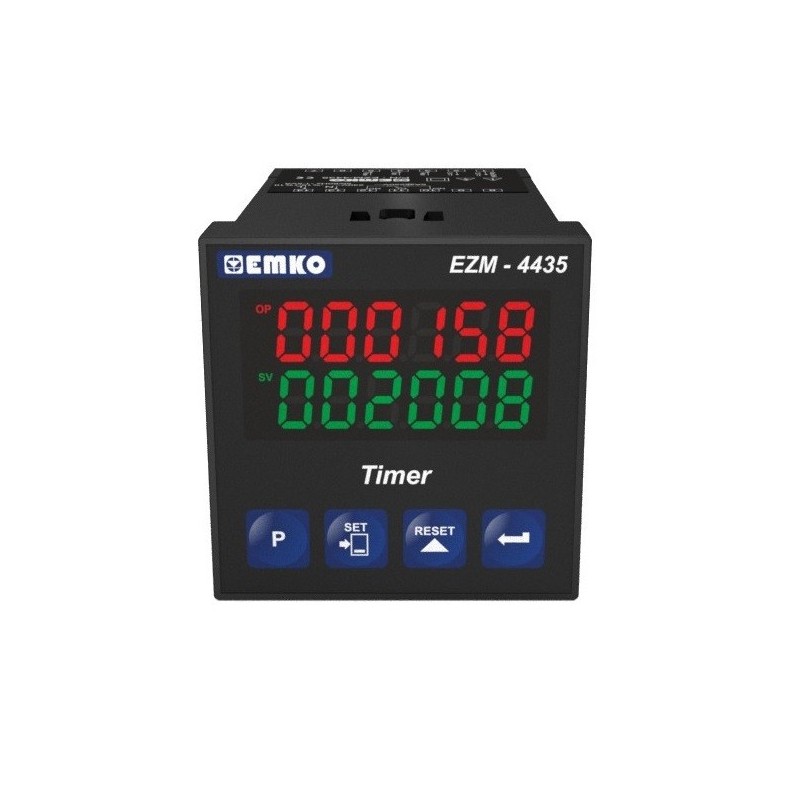

EZM-4435 Single Set Programmable Timer
EZM-XX35
Operation with Automatic and Manuel Reset
Programmable Time Bases (Second, Minute, Hour)
6 Digits process (PV) and 6 Digits Set (SV) Value Display
Single Contact Output for Timing control ( ON /OFF )
Operation with 1 Set Value
Reset, Pause and Start Inputs
Password protection for programming section
NPN/PNP Type Operation
| Features | Descriptions |
| Physical Features | |
| Dimensions | 48 mm x 48 mm 87,5 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | -40 ºC with +85 ºC / 0 ºC with +50 ºC |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 230 Vac(-%15 / +%10) 50/60 Hz. 1.5VA 115 Vac(-%15 / +%10) 50/60 Hz. 1.5VA 24 Vac(-%15 / +%10) 50/60 Hz. 1.5VA 24ac/dc (-%15 / +%15) 4W |
| Sensor Inputs | 12 Vdc ±% 40 Maximum 50 mA |
| Optional Sensor Inputs | |
| Scale | |
| Accuracy | |
| Output | |
| Relay Output | 5A@250V |
| SSR Output | |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | |
| Reading Frequency | |
| Communication Protocols | |
| Approvals | EAC, CE |
