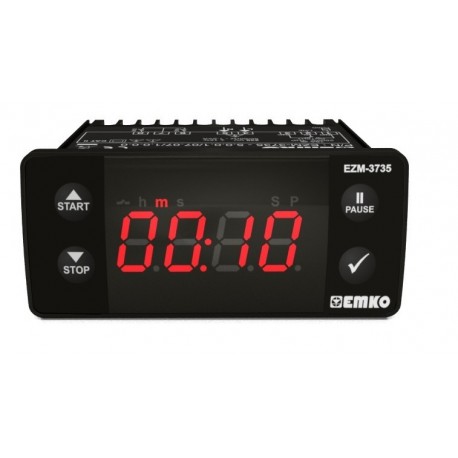

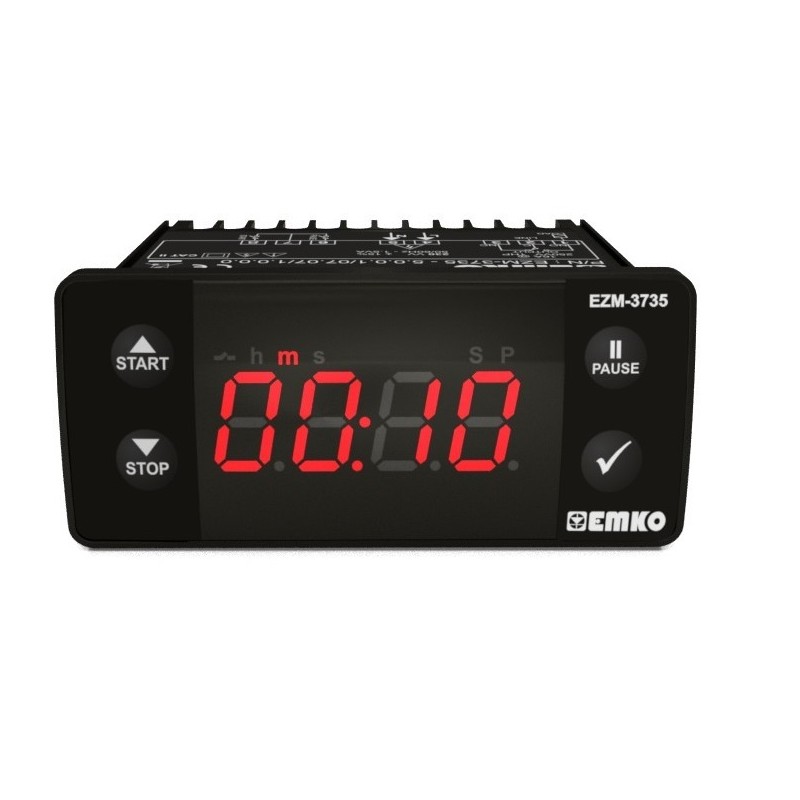

EZM-3735 Single SET Programmable Timer View larger

EZM-3735 Single SET Programmable Timer

New product

More info

EZM-3735 Single SET Programmable Timer

4 Digits Display
Operation with One Set value
Single Contact Output for Timing control
External Start Input
Start and Stop Possibility by front Panel
Set value high limit boundaries
Display can be adjusted to show Second, Minute and Hour
Programmable Time Bases (Second, Minute, Hour)
Adjustable internal buzzer according to Timer Stop status.
Password protection for programming section
Having CE mark according to European Norms

Features Descriptions
Physical Features
Dimensions 76 mm x 34,5 mm x 71 mm
Protection Class NEMA 4X (IP65 at front, IP20 at rear)
Installation Fixed Installation
Storage Temperature -40 ºC to +80 ºC
Storage / Operating Humidity 90 % max. (None condensing)
Electrical Features
Supply Voltage and Power 230 Vac (± %15) 50/60 Hz 1.5 VA
115Vac (± %15) 50/60 Hz 1.5 VA
100-240Vac 50/60 Hz.
24Vac (± %15) 50/60 Hz 1.5 VA
24Vac/dc (± %15) 50/60 Hz 1.5 VA
10-30 Vdc
Sensor Inputs Mechanical contact
Optional Sensor Inputs
Scale
Accuracy within ± % 0.1 error
Output
Relay Output 16(8) A@250 Vac for Resistive load (Output Relay)
(Electrical life : 100.000 switching at full load)
SSR Output
Analogue Output
Optional Outputs
Control
Control Form ON / OFF
Reading Frequency
Communication Protocols
Approvals EAC, CE
