> >Proop Black 4 Eco 4,3 inch Professional Operator Panel

Operator Panels HMI/PLC

Information

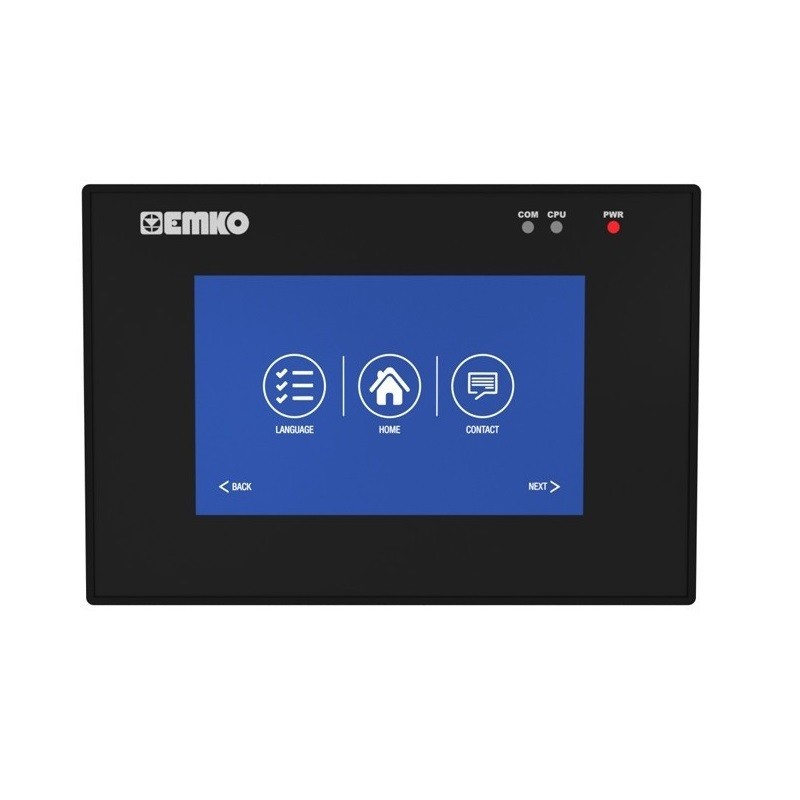

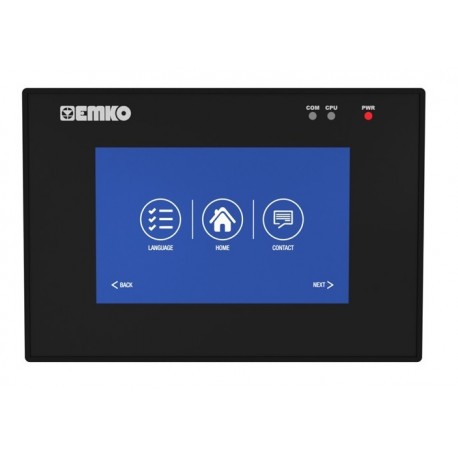

Proop Black 4 Eco 4,3 inch Professional Operator Panel View larger

Proop Black 4 Eco 4,3 inch Professional Operator Panel

New product

More info

Proop Black 4 Eco 4,3 inch Professional Operator Panel

4,3" boyutlarında yüksek çözünürlüklü TFT LCD ekrana sahip,
RS-232 ve RS-485 haberleşmeli, HMI Panellerler

Features Descriptions
Graphics / Visual Features
Display Type 4.3 inch TFT
Display colors 260K color
Resolution 480x272
Storage / Operating Temperature -40 ºC with +85 ºC / 0 ºC with +50 ºC
Physical Features 90 % max. (None condensing)
Dimensions 153 mm x 105 mm 50 mm
Panel section 143 x97 mm
Weight Approximately 350g
Technicial Specifications
Digital Inputs None
Digital Outputs None
Analogue Inputs None
Analgoue Outputs None
Serial Communication-2 RS-485 (Terminal) Maks. Hız : 57600
Serial Communication-3 RS-232 (Terminal) Maks. Hız : 230400
Serial Communication-4 None
MCU ARM Cortex-A Series
Flash Memory 8GB eMMC
RAM 512 MB DDR3 SDRAM
Buzzer None
USB Device 1 x USB 2.0
USB Host 1 x USB 2.0
Optional Communication Wi-Fi (IEEE 80211 b/g/n), Ethernet (10/100 mbps full Duplex)
Communication Protocols Modbus-RTU, Modbus-ASCII, Modbus-ASCII (Slave), Modbus-RTU (Slave)
Approvals CE , EAC
