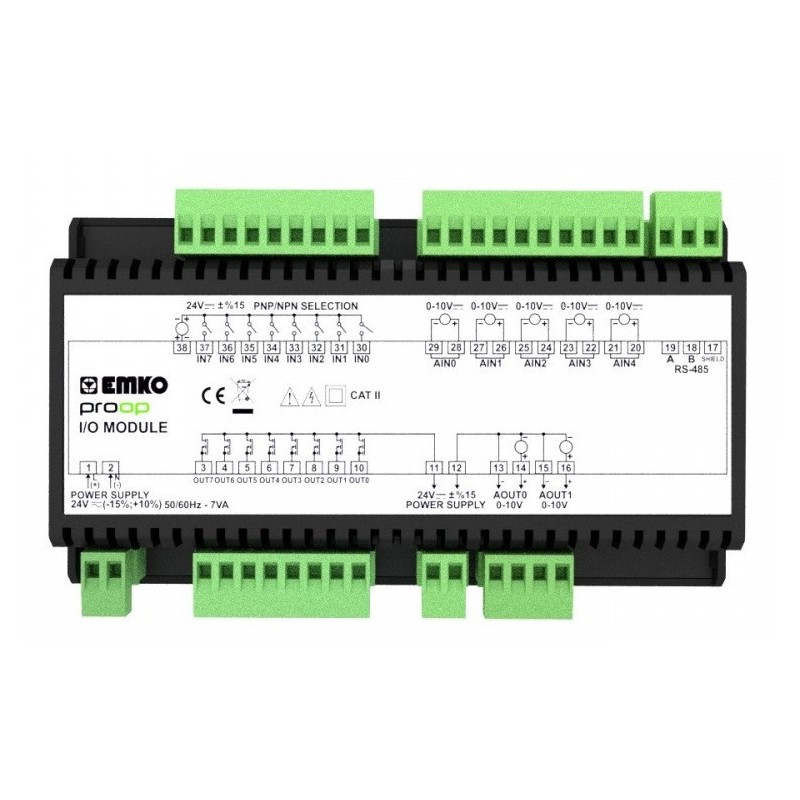

PROOP - I/O Module Input, Output Expansion Module View larger

PROOP - I/O Module Input, Output Expansion Module

New product

More info

PROOP - I/O Module Input, Output Expansion Module

Expansion module for Proop 10, Proop 7 with Professional Operator Panel

Features Descriptions
Technicial Specifications
Power Supply 24 VDC
Permissible Range 20.4 - 27.6 VDC
Power Consumption 3W
Dijital Inputs
Digital Inputs 8 Inputs
Nominal Input Voltage 24 VDC
Input Voltage For Logic 0 - For Logic 1
< 5 VDC - >10 VDC
Input Current 6mA max.
Input Impedance 5.9 kohm
Response Time '0' to '1' 50ms
Galvanic Isolation 500 VAC for 1 minute
Digital Outputs
Digital Outputs 8 Output
Outputs Current 1 A max. (Total current 8 A max.)
Galvanic Isolation 500 VAC for 1 minute
Short Circuit Protection Build in
Analog Inputs
Analog Inputs 5 Input
Input Impedance PT-100 0/4-20mA 0-10V 0-50mV
-200oC-650oC 100ohm >6.6kohm >10Mohm
Galvanic Isolation None
Resolution 14 Bit
Accuracy ±0,25%
Sampling Time 250 ms
Status Indication Build in
Analog Outputs
Analog Output 2 Output
0/4-20mA 0-10V
Galvanic Isolation Build in
Resolution 12 Bit
Accuracy %1 of full scale
