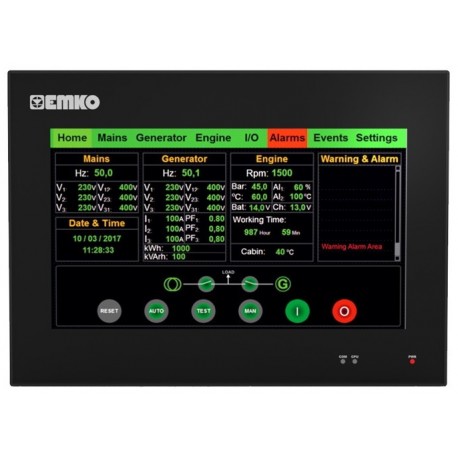

Proop Black 10.1 Process 10.1 inch Professional Operator Panel View larger

Proop Black 10.1 Process 10.1 inch Professional Operator Panel

New product

More info

Proop Black 10.1 Process10.1 inch Professional Operator Panel

10.1 "high resolution TFT LCD display
Internal digital input / output and analog input / output features
Ethernet, RS-232 and RS-485 communication
Optional WiFi and 2nd Ethernet input
Process monitoring / control
Remote monitoring / control

eatures Descriptions
Graphics / Visual Features
Display Type 10.1 inc TFT
Display colors 16M color
Resolution 1024x600
Storage / Operating Temperature -20 ºC with +60 ºC / 0 ºC with +50 ºC
Physical Features 90 % max. (None condensing)
Dimensions 278 mm x 200 mm 50 mm
Panel section 265 x186 mm
Weight Approximately 1300g.
Technicial Specifications
Digital Inputs 5
Digital Outputs 4
Analogue Inputs 2 x 4...20mA
Analgoue Outputs 2 x 4...20mA
Serial Communication-2 RS-485 (Terminal) Maks. Hız : 57600
Serial Communication-3 RS-232 (Terminal) Maks. Hız : 230400
Serial Communication-4 RS-232 (DB-9 socket)
MCU ARM Cortex-A Series
Flash Memory 8GB eMMC
Buzzer Build in >=85 dB
USB Device 1 x USB 2.0
USB Host 1 x USB 2.0
Optional Communication
Wi-Fi (IEEE 80211 b/g/n), Ethernet (10/100 mbps full Duplex)
Communication Protocols Modbus-RTU, Modbus-ASCII, Modbus TCP/IP, Modbus-ASCII (Slave), Modbus-RTU (Slave), Modbus TCP/IP (Slave), ISOTCP (S7-300 , S7-400, S7-1200, S7-1500),  BACNET MS/TP, BACNET IP
Approvals CE , EAC
