OPTITEMP TCA-TF31

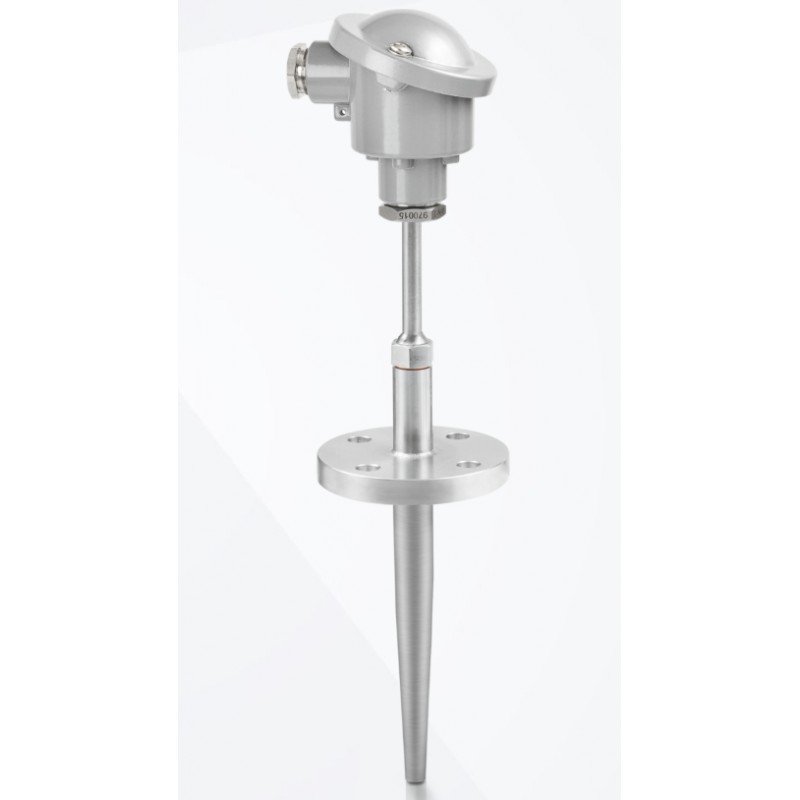

The OPTITEMP TCA-TF31 is a flanged thermocouple (TC) assembly with a tapered barstock thermowell (based on form 4F). The temperature assembly for advanced requirements is particularly suitable for use in pipes, tanks or reactors where a high mechanical stress resistance of the thermowell is required (e.g. petrochemical or oil and gas applications). The advantage of this sensor type is that its wetted parts can be coated (e.g. with PTFE), making it resistant to aggressive media. The TC is designed for temperature measurement of solids, liquids, gases and steam up to +600°C / +1100°F.

The OPTITEMP TCA-TF31 features a modular design with a threaded standard neck tube that can be exchanged easily, even under operating conditions. This makes the temperature assembly very flexible. If it has been damaged from the outside, servicing can be carried out without process shut down. The thermocouple assembly can be combined with most thermowells. It is available with ATEX and IECEx approvals.

Product highlights

• Temperature measurement of solids, liquids, gases and steam
• Modular design: threaded standard neck tube for easy exchange under operating conditions
• Thermowell material: 1.4404 / 316L, 1.4571 / 316Ti, 1.7335 / 13CrMo44, 1.0460 / C22.8
• Chemically resistant PTFE or similar coating for all wetted parts available
• Temperature range: -40…+600°C / +1100°F
• Standard or customised lengths
• Different connection heads available (IP54…IP68)
• With optional temperature transmitter
• Available as intrinsically safe (Ex i) and flameproof (Ex d): ATEX, IECEx

Typical applications

• Applications with advanced requirements
• Temperature measurement of media requiring high mechanical stress resistance
• Suitable for applications where assemblies complying with DIN standards are required
• Primarily used in the chemical or petrochemical industries, in oil and gas extraction as well as industries such as:
  • Power generation
  • Machinery and apparatus / OEM
  • Iron and steel
  • Pulp and paper
