OPTITEMP TCA-S41

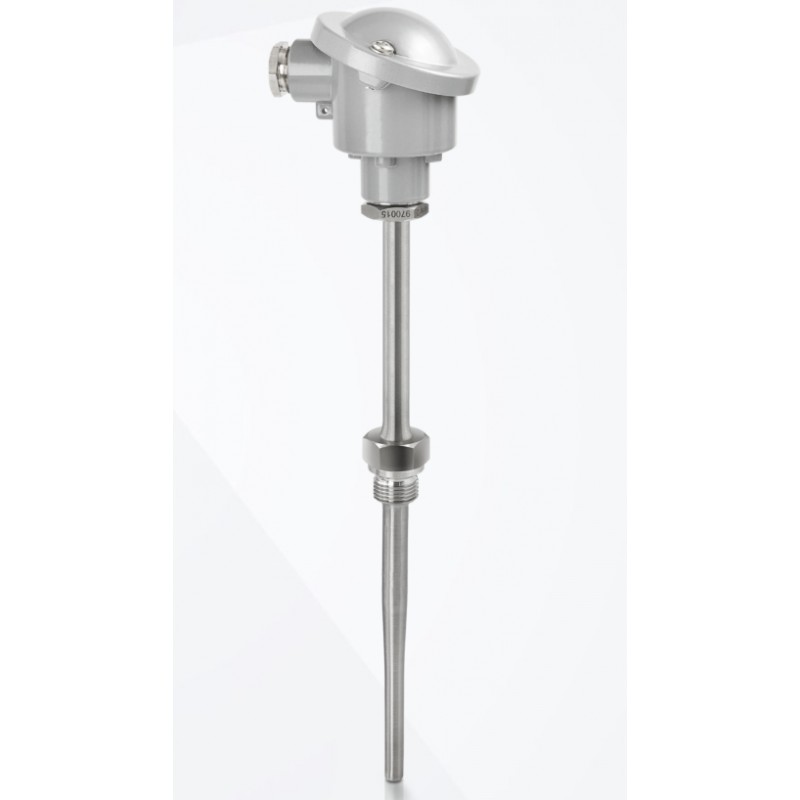

The OPTITEMP TCA-S41 is a threaded thermocouple (TC) assembly with a tapered welded multipart thermowell (based on form 3G) in accordance with NAMUR. The industrial temperature assembly for standard applications is suitable for use in pipes and tanks, at low to medium pressures and flow velocities. It is designed for temperature measurement of liquids and gases up to +600°C / +1100°F. The thermocouple is available with ATEX and IECEx approvals.

Product highlights

• Industrial temperature measurement of liquids and gases
• Thermowell material: 1.4404 / 316L or 1.4571 / 316Ti
• Standard or customised lengths
• Different connection heads available (IP54…IP68)
• With optional temperature transmitter
• Available as intrinsically safe: ATEX, IECEx

Typical applications

• Standard applications with low to medium pressures and flow velocities
• Temperature measurement in pipes and tanks
• Suitable for applications where assemblies complying with DIN standards are required
• Basic measuring tasks in various industries:
  • Chemical and petrochemical
  • Oil and gas
  • Power generation
  • Machinery and apparatus / OEM
  • Iron and steel
  • Pulp and paper
