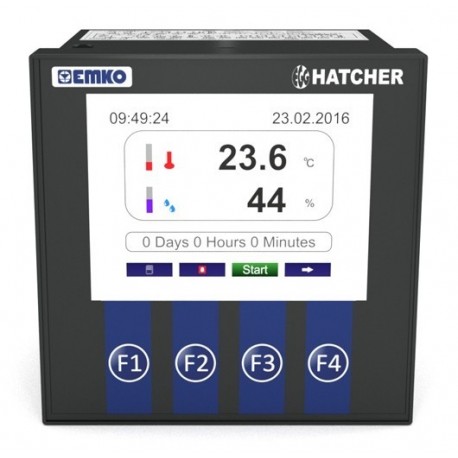

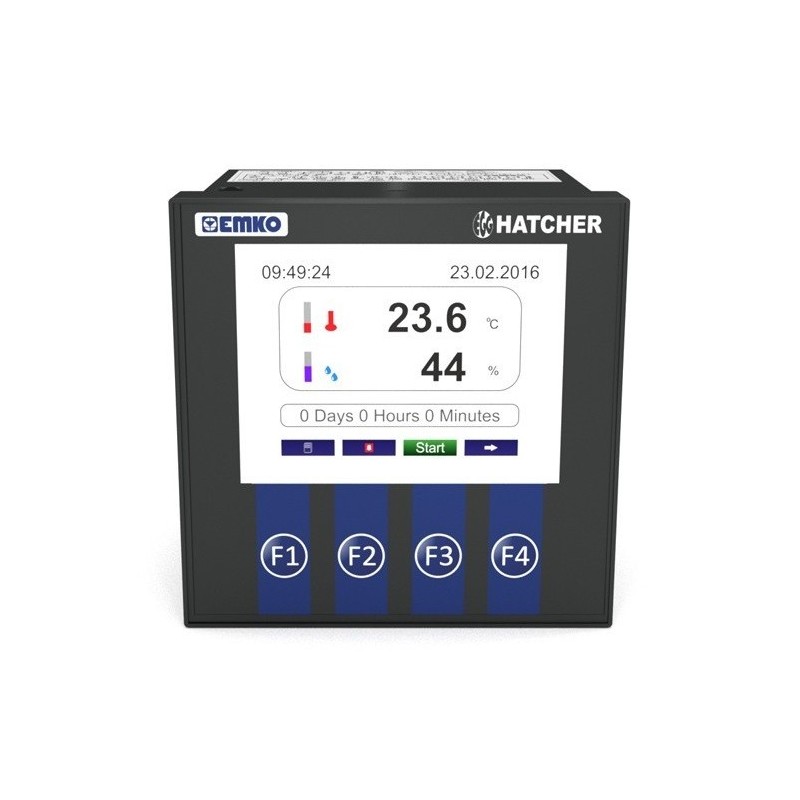

EGG HATCHER TFT LCD Display Incubator Controller
320 x 240 Pixel TFT LCD
Can Start the Incubation Period Minus Days
(RTC) Real Time Time Operation
On the Main Screen
(Day, Hour, Minute) Display
Heating PID or ON/OFF
Cooling ON / OFF Control
Analogue input (mA, mV, V, PT-100, Pronem-Mini)
(Must be determined in order)
Humidity Control
Shutter Control
Tray Rotation Control
Alarm Parameters
Real Time Clock
Event Logs
| Features | Descriptions |
| Physical Features | |
| Dimensions | 96 mm x 96 mm x 96 mm |
| Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
| Installation | Fixed Installation |
| Storage / Operating Temperature | -20°C to +70°C / 0°C to +50°C |
| Storage / Operating Humidity | 90 % max. (None condensing) |
| Electrical Features | |
| Supply Voltage and Power | 100 - 240 Vac ( -%15/+%10 ) 50/60 Hz. 7VA 24Vdc ( -%15/+%10 ) 7W 24Vac ( -%15/+%10 ) 50/60 Hz. 7VA |
| Sensor Inputs | 0-10Vdc, 0-20mAdc, 0-50mVdc, PT-100 (IEC751)(ITS90), PRONEM MINI |
| Optional Sensor Inputs | |
| Scale | |
| Accuracy | ± % 0,25 of full scale |
| Outputs | |
| Relay Output | Resistive Load 5A@250Vac |
| SSR Output | PNP(Source) type transistor output (Maximum 1A@24Vdc) |
| Analogue Output | |
| Optional Outputs | |
| Control | |
| Control Form | On / Off and PID |
| Reading Frequency | 100 ms |
| Communication Protocols | |
| Approvals | GOST-R |
