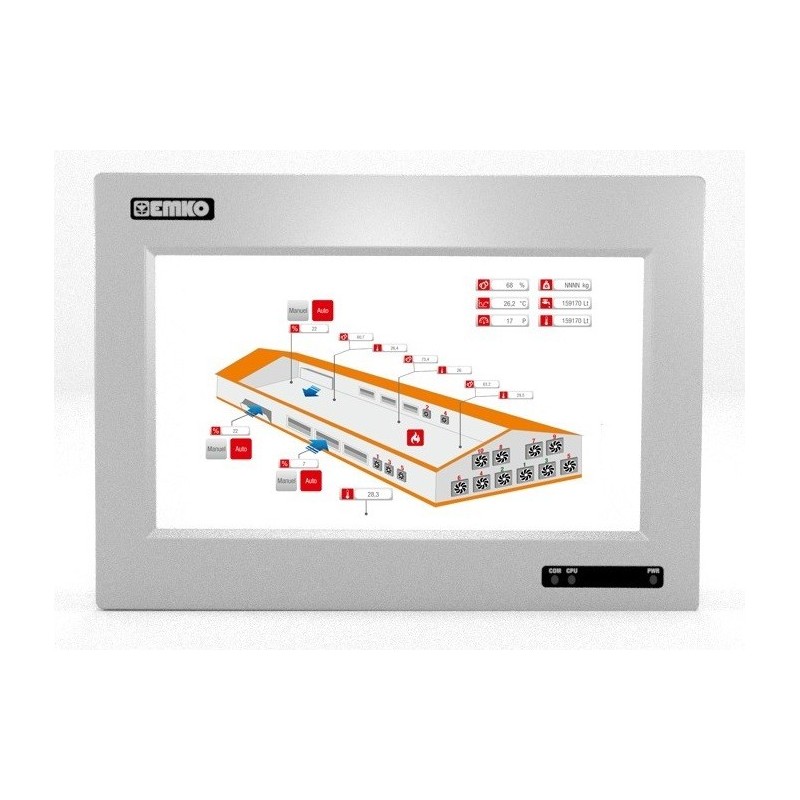

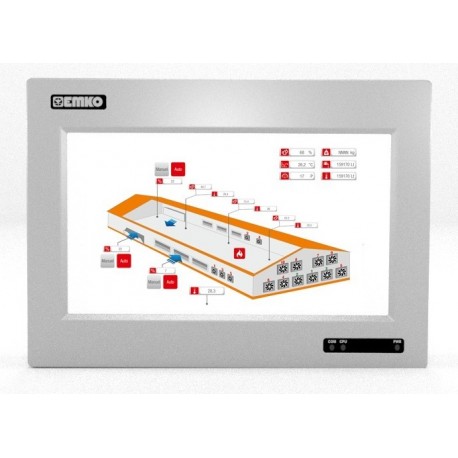

EPC-T10 Poultry House Controllers View larger

EPC-T10 Poultry House Controllers

New product

More info

EPC-T10 Poultry House Controllers

Easy Access to Control Process for :
Layer ; Egg production
Broiler ; Chicken production for excellent quality meat
Breeder ; Mother and father growth for broiler and layer

Features Descriptions
Cihaz türü Poultry Controller
Physical Properties
Control Card 280x100 mm
HMI 278 X 200 MM
Weight / HMI 1300 G, Control Kartı / 616 g.
Environmental Ratings Standard, indoor at an altitude of less than 2000 meters
With none condensing humidity.
Storage Temperature / Operating Temperature -20ºC to +60ºC
Storage Humidity / Operating Humidty 90% max. (None condensing)
Installation Fixed installation.
Over-voltage Category II.
Pollution Degree II. Office or workplace, non conductive pollution.
Operating Conditions Continuous
Device Supply Voltage and Power 18 VAC (-%15 / +%10) 50/60 Hz. 25 VA
24 VDC (-%15 / +%10) 20 W
(for HMI + 1 pc. Control Card)
Temperature Sensor Inputs PT-100 (IEC751)(ITS90), 0-10 V, 0-20 mA
Accuracy ± %0,25 of full scale
Sensor Break Protection Upscale
Reading Frequency 600 ms
Input Resistance for Pt100 input time >10MOhm
for 0-10 V input time 17 kOhm
for 0-20 mA input time 470 Ohm
Outputs Relay, 0-20 mA and 0-10 V
Analogue Output 0-20mA, 0-10V (max. 3 mA)
Relay Output Resistive Load 10A@250VAC
Electrical Life 50.000 operation-Full Load
Standard Communication RS-232 (Modbus RTU)
Optional Communication 10Mbits/s Ethernet (Modbus RTU Over TCP/IP-Modbus RTU TCP/IP)
'1500 VAC isolated'
Display 1024 X 600 pixel TFT
Uyumlu Standartlar CE, EAC
