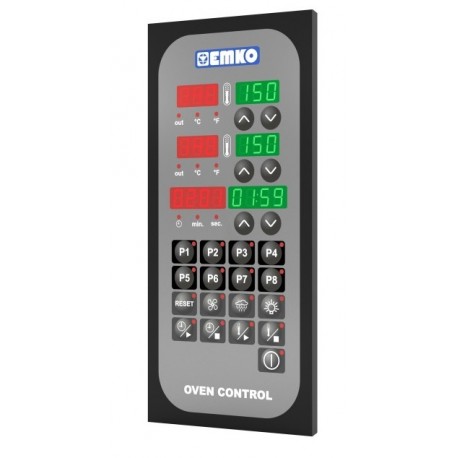

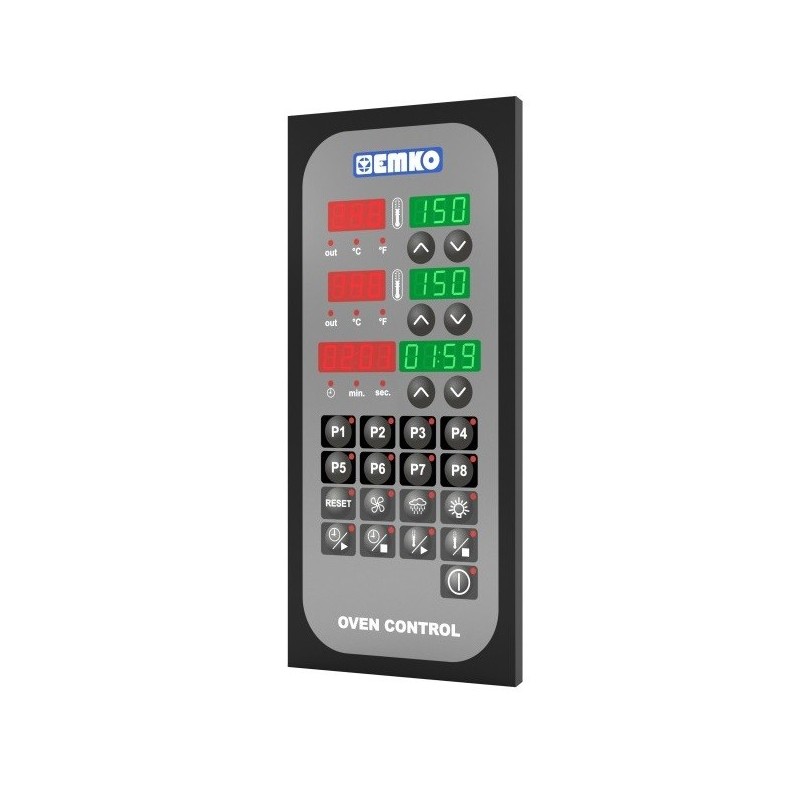

Oven Controller (Dual) Dual Zone Oven Controller View larger

Oven Controller (Dual) Dual Zone Oven Controller

New product

More info

Oven Controller (Dual) Dual Zone Oven Controller

8 buttons to making different programs
2 isolated thermocupl input
J or K (It must be determined in order)
Auto-start feature with real time
ON / OFF temperature control for 2 areas
Limitation of set value
Adjustable temperature offset
Selection of operation with hysteresis
4 displays which has 3 digits and 2 diplays which has
4 digits (For clock)
Relay outputs to control 2 Heaters(no/nc),
4 Fans, Brulor, Steam,Lamp and Time-Out
1 door status input and 1 brulor failure input
For failure and set status internal buzzer
Password protection for programming mode

Features Descriptions
Physical Features
Dimensions 300 mm x 140 mm
Protection Class NEMA 4X (IP65 at front)
Installation Fixed Installation
Storage / Operating Temperature 0...50°C
Storage / Operating Humidity 90 % max. (None condensing)
Electrical Features
Supply Voltage and Power 24Vac/dc (-%15, +%10) 50/60Hz
24Vac (-%15, +%10) 50/60Hz
115Vac (-%15, +%10) 50/60Hz
230Vac (-%15, +%10) 50/60Hz
Sensor Inputs Termokupl J, K (IEC584.1)(ITS90)
Optional Sensor Inputs
Scale Fe CuNi 0°C...800°C
NiCr 0°C...999°C
Accuracy ± % 1 of full scale
Output
Relay Output 2x 10A@250 Vac for heating control, 8 x 8A@250Vac for
Fan, steam, lighting, time, cooling
SSR Output
Analogue Output
Optional Outputs
Control
Control Form On/Off
Reading Frequency 3 readings per second
Communication Protocols
Approvals CE
