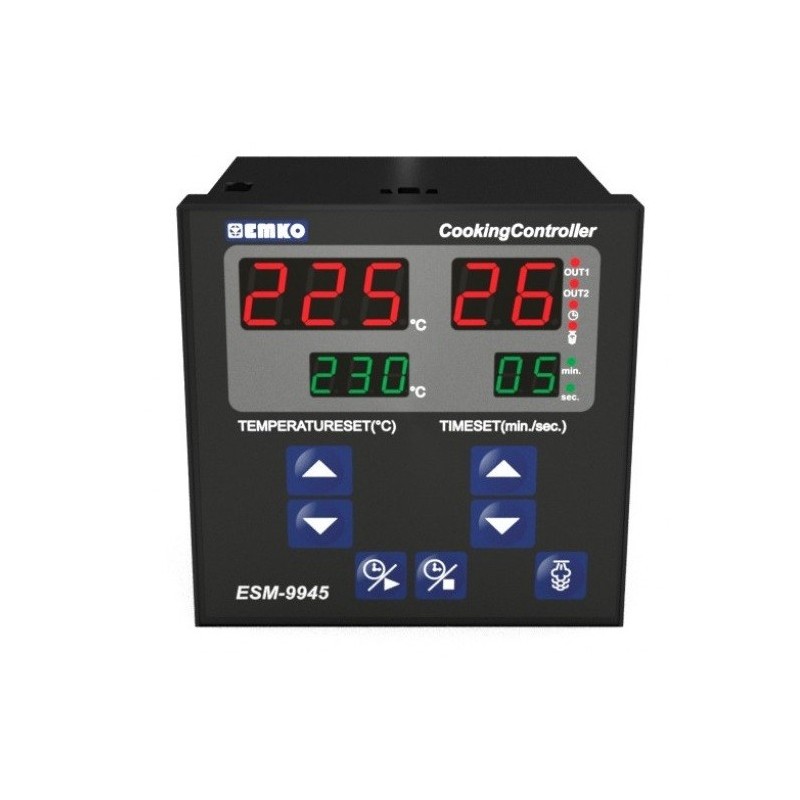

ESM-9945 with Steam Output Cooking Controllers (96 X 96 mm ) View larger

ESM-9945 with Steam Output Cooking Controllers (96 X 96 mm )

New product

More info

ESM-9945 with Steam Output Cooking Controllers (96 X 96 mm )

On/Off or Proportional control form selection
Pt-100 2 wire or 3 wire temperature input
J type thermocouple, K type thermocouple,
On/Off or Proportional control form selection,
Working time selection in minutes or seconds,
Hysteresis adjustment,
Audible alarm by internal buzzer,
Door switch input
Steam output

Features Descriptions
Dimensions 96 mm x 96 mm 87.5 mm.
Protection Class NEMA 4X (IP65 at front, IP20 at rear)
Installation Fixed Installation
Storage / Operating Temperature 0...50°C
Storage / Operating Humidity 90 % max. (None condensing)
Electrical Features
Supply Voltage and Power 230 Vac(+%15) 50/60 Hz. 1.5 VA
115 Vac (+%15) 50/60 Hz. 1.5 VA
24 Vac (+%15) 50/60 Hz. 1.5 VA
Sensor Inputs J, K (IEC584.1)(ITS90)
PT-100, PT-1000 (IEC751)(ITS90)
Optional Sensor Inputs
Scale Fe CuNi 0°C...800°C
NiCr 0°C...999°C
PT 100 -50°C...400°C
Accuracy ± % 1 of full scale for Thermocouple and Thermoresistance
Output
Relay Output Temperature Output: 7A@250 Vac at resistive load
Time Output: 7A@250 Vac at resistive load
Steam Output: 7A@250 Vac at resistive load
SSR Output Temperature Output: Max. 20mA @ 12Vdc
Time Output: Max. 20mA @ 12Vdc
Steam Output: Max. 20mA @ 12Vdc
Analogue Output
Optional Outputs
Control
Control Form On / Off
Reading Frequency 3 readings per second
Communication Protocols
Approvals CE, EAC
