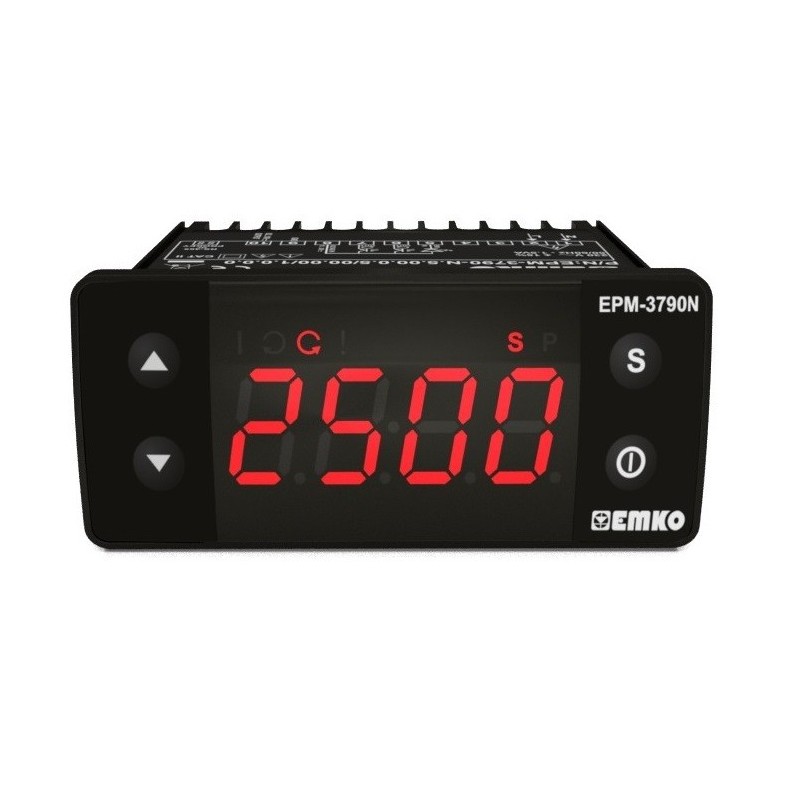

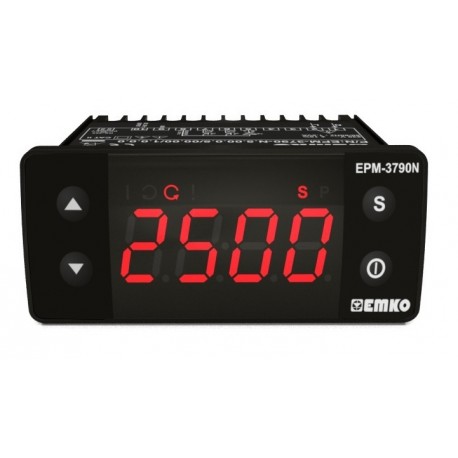

EPM-3790-N Digital Potentiometer ( 77 X 35mm) Büyük Resim

EPM-3790-N Digital Potentiometer ( 77 X 35mm)

Yeni Ürün

Ürün Açıklaması

EPM-3790-N Digital Potentiometer ( 77 X 35mm)

Forward, Reverse direction outputs and error input
for V/F Speed Controller
Operation at Adjustable Set Value
Ramp Function
Economical
Easy to User
4 Digits Display
Easily adjustable set value from front panel
Configurable display scale between -1999 and 9999
Adjustable decimal point
Set value low limit and set value high limit boundaries
Adjustable ramp up and ramp down time
0/2...10Vdc Voltage output or 0/4...20mAdc Current output
(It must be determined in order.)

Features Descriptions
Physical Features
Dimensions 77mm x 35mm x 62.5mm
Protection Class NEMA 4X (IP65 at front, IP20 at rear)
Installation Fixed Installation
Storage / Operating Temperature -40 ºC with +85 ºC / 0 ºC with +50 ºC arasında.
Storage / Operating Humidity 90 % max. (None condensing)
Electrical Features
Supply Voltage and Power 230 Vac (+%15) 50/60 Hz. 1.5 VA
115 Vac(+%15) 50/60 Hz. 1.5 VA
24 Vac(+%15) 50/60 Hz. 1.5 VA
24 Vac/dc (+%15, +%10) 50/60 Hz. 1.5 VA
100-240Vac 50/60Hz
10-30 Vdc
Sensor Inputs
Optional Sensor Inputs
Scale Configurable between -1999 and 9999
Accuracy
Output
Relay Output 0/2...10Vdc Voltage Output (Maks. 10mA) or
0/4...20mAdc Output Current
SSR Output
Analogue Output
Optional Outputs Max. 5mA @ 30Vdc
Max. 5mA @ 30Vdc
Control
Control Form
Reading Frequency
Communication Protocols
Approvals CE , EAC
