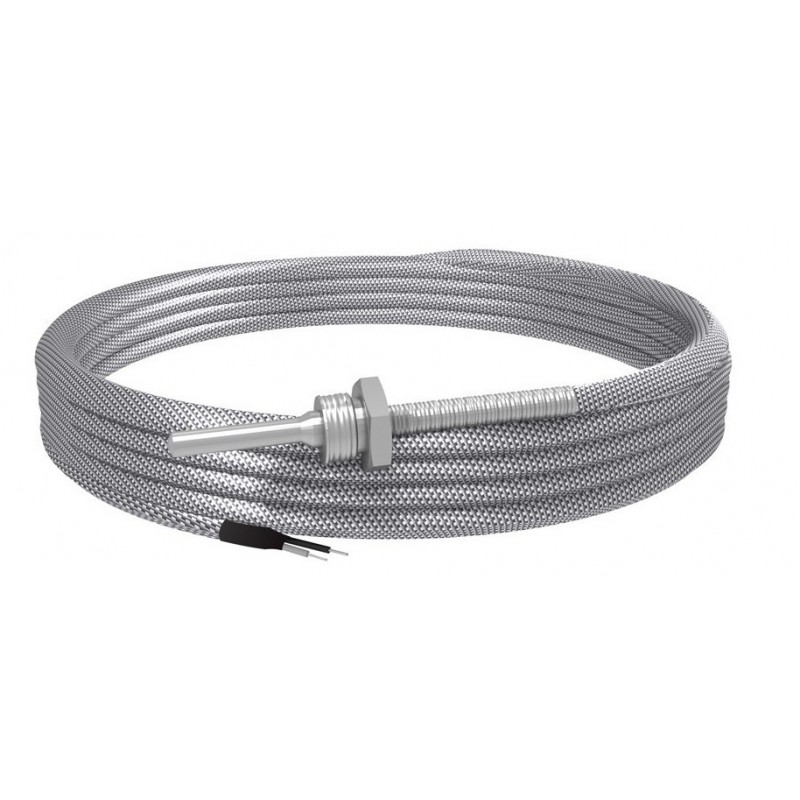

Bayonet Type with Fittingnut “J” and “K” type Thermocouples View larger

Bayonet Type with Fittingnut “J” and “K” type Thermocouples

New product

More info

Bayonet Type with Fittingnut “J” and “K” type Thermocouples

Features Descriptions
Max. operating temperature 400°C for braided wire
200°C for silicone
Standard cable types Fiber glass + fiber glass + braided wire, 2x 0,22mm : Standard Production
Silicone + Silicone, 2x 0,22mm : "Si+Si" is added to order code
Standard cable length K01 = 1 mt, K02 = 2 mt, K03 = 3 mt,
K04 = 4 mt, K05 = 5 mt
Sensor type DIN/IEC-584 "J" FeCu-Ni E= J,
DIN/IEC-584 "K" NiCr-Ni E= K
Protection tube material AISI304 (DIN1.4301) Stainless Steel
Connector 1/4 x 19" (selectable as M12" on ordering)
Fittingnut ½" fittingnut is used for standard production
