> >>(TCK) Terminal Block Type / (TCKT) with Transmitter

Temperature Sensors

Information

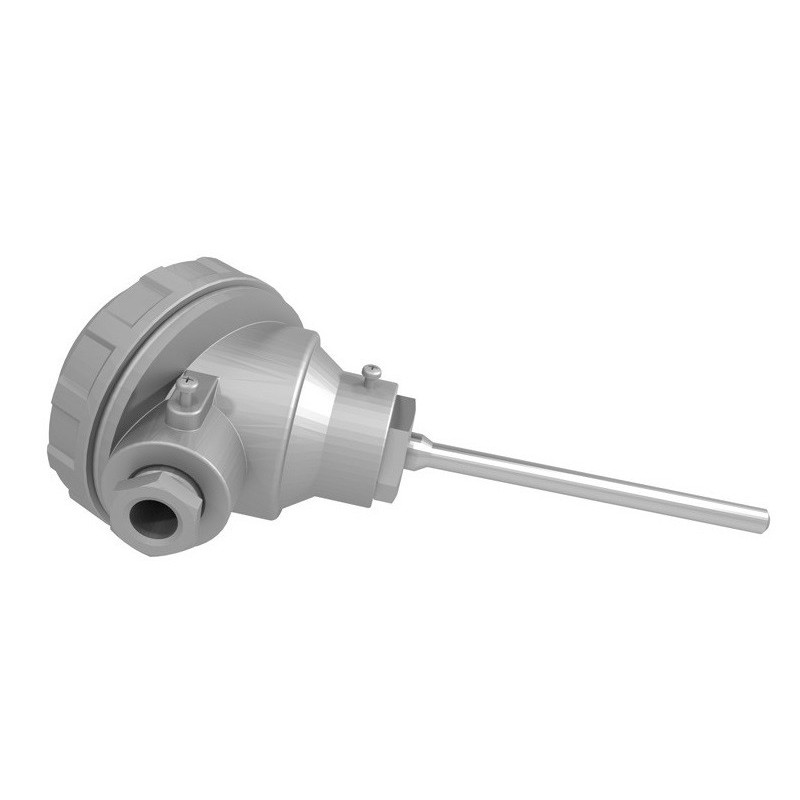

(TCK) Terminal Block Type / (TCKT) with Transmitter View larger

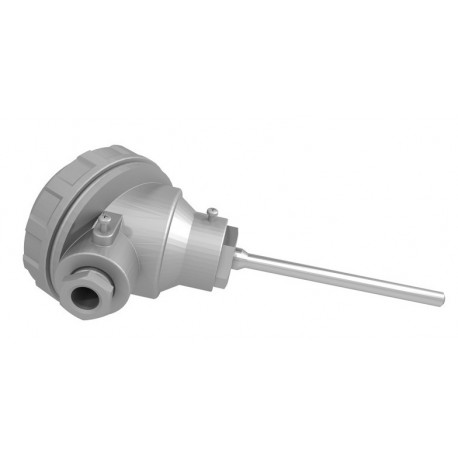

(TCK) Terminal Block Type / (TCKT) with Transmitter

New product

More info

(TCK) Terminal Block Type / (TCKT) with Transmitter “K” type Thermocouples

Features Descriptions
Max. operating temperature (M10): 800°C ( Wire diameter: 1,5mm)
(M16): 900°C ( Wire diameter: 2,0mm)
(M22): 1200°C ( Wire diameter: 3,0mm)
Standard cable types
Standard cable length
Sensor type DIN/IEC-584 "K" NiCr-Ni E= K
Protection tube material (M10,M16) : AISI304 (DIN1.4301)
(M22) : AISI310 Stainless steel
Connector
Fittingnut
Transmitter 4...20mA current output, serial connection (Loop Powered) transmitter.
F= Calibration scale must be described on ordering.
