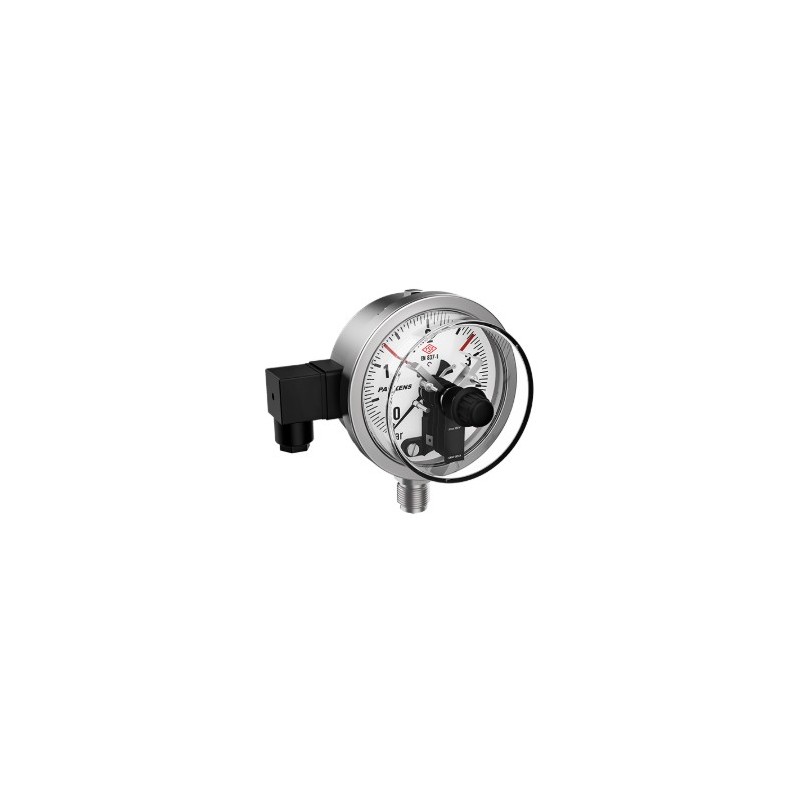

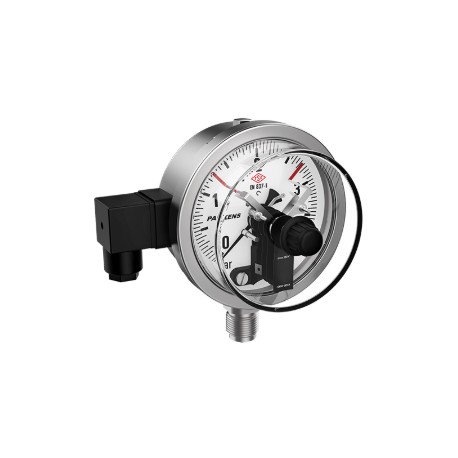

MK 100 Contact Pressure Gaguge View larger

MK 100 Contact Pressure Gaguge

New product

More info

Used with gas and liquids which do not attack stainless steel 316L.
Industry Sector: Petro-chemical plants, Mining industry, Machinery Manufacturing and Hydraulics/Pneumatics.

Usage Properties
Operating Pressure (max.)
  •  Must not exceed full scale.
Conformity
  • EN 837 - 1
Accuracy Class
  • CL 1.0
Protection Rate
  • IP 65
Mechanical Vibration Test
  • 10Hz-150Hz 1 Octave/minute - 3 axis
Mechanical Shock Test Load
  • 15g
Optimum Operating Range
  • Between 0,0 x PN and 1,0 x PN
Over Pressure Limit
  • F.S. x 1,3
Fluid Temperature
  • Maximum + 200 °C
Ambient Temperature
  • - 20 ... + 60 °C
Storage Temperature
  • -40 ... +70 °C
Constructive Properties
Mounting Type
  • Bottom Connection
Scale Unit
  • bar/psi
Scale Range (PN)
  • 0/0,6
  • 0/1
  • 0/1,6
  • 0/2,5
  • 0/4
  • 0/6
  • 0/10
  • 0/16
  • 0/25
  • 0/40
  • 0/60
  • 0/100
  • 0/160
  • 0/250
  • 0 - 315
  • 0/400
  • 0/600
Vacuum Scale Range
  • -1 / 0
  • -1 / +0,6
  • -1 / +1,5
  • -1 / +3
  • -1 / +5
  • -1 / +9
  • -1 / +15
  • -1 / +24
Case
  • Stainless Steel AISI-304
Bezel
  • Stainless Steel AISI-304
Movement
  • Stainless Steel AISI-304
Window
  • Polycarbonate
Wetted Parts
  • Stainless Steel AISI-316L
Connection
  • G 1/2’’ B
Dial
  • Aluminum
Pointer
  • Aluminum
Welding
  • TIG Welding
Contact Types
  • 1NO
  • 1NC
  • 2NONO
  • 2NONC
  • 2NCNC
  • 2NCNO
