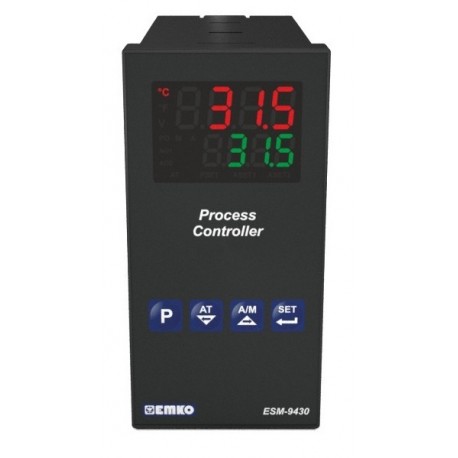

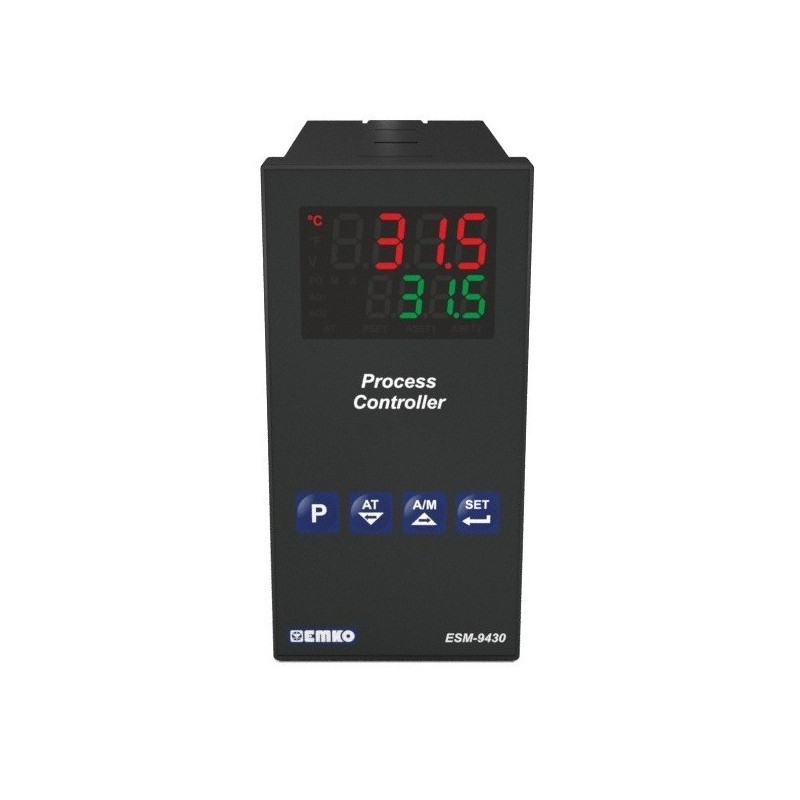

ESM-9430 Process Control Device with Universal Input and Dual Set View larger

ESM-9430 Process Control Device with Universal Input and Dual Set

New product

More info

ESM-9430 Process Control Device with Universal Input and Dual Set

ESM-XX30
Auto-tune and Self-tune PID
Dual or multi point calibration for dc Voltage/Current input
Bumpless transfer
4 Digits process (PV) and 4 Digits set (SV) display
Universal process input (TC, RTD, mVdc, Vdc, mAdc)
Configurable ON/OFF, P, PI, PD, and PID control forms
Manual/Automatic mode selection for control outputs
Programmable heating, cooling and alarm
functions for control outputs

Features Descriptions
Physical Features
Dimensions 48 mm x 96 mm 86,5 mm
Protection Class NEMA 4X (IP65 at front, IP20 at rear)
Installation Fixed Installation
Storage / Operating Temperature 0...50ºC
Storage / Operating Humidity 90 % max. (None condensing)
Electrical Features
Supply Voltage and Power 100-240 Vac (-15%,+10%) 50/60 Hz. 6 VA
24 Vac (-15%,+10%) 50/60 Hz. 6 VA
24 Vdc (-15%,+10%) 6 W
Sensor Inputs Selectable by configuration parameters L (DIN43710),
J, K, R, T, S, B, E, N (IEC584.1) (ITS90)
Optional Sensor Inputs Selectable by configuration parameters 0-50 mV, 0-5 V, 0-10 V
Selectable by configuration parameters 0-20 mA, 4-20 mA
Scale
Accuracy ± 0,25% of full scale for Thermocouple ,Thermoresistance, and Voltage
Output
Relay Output 5A@250 Vac at resistive load
SSR Output 17mA@25V Dc(Maximum)
Analogue Output
Optional Outputs
Control
Control Form On / Off, P, PI, PD, PID
Reading Frequency 3 readings per second
Communication Protocols
Approvals UL Recognized Component (File No : E 254103), GOST-R, CE
