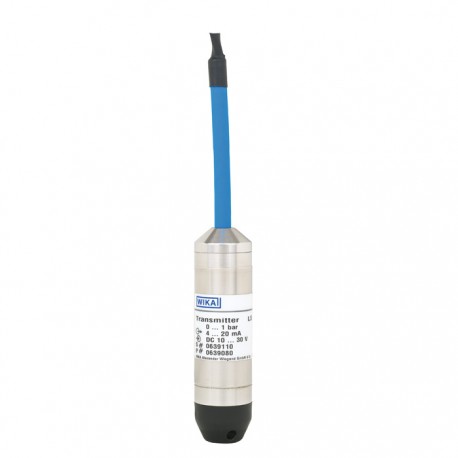

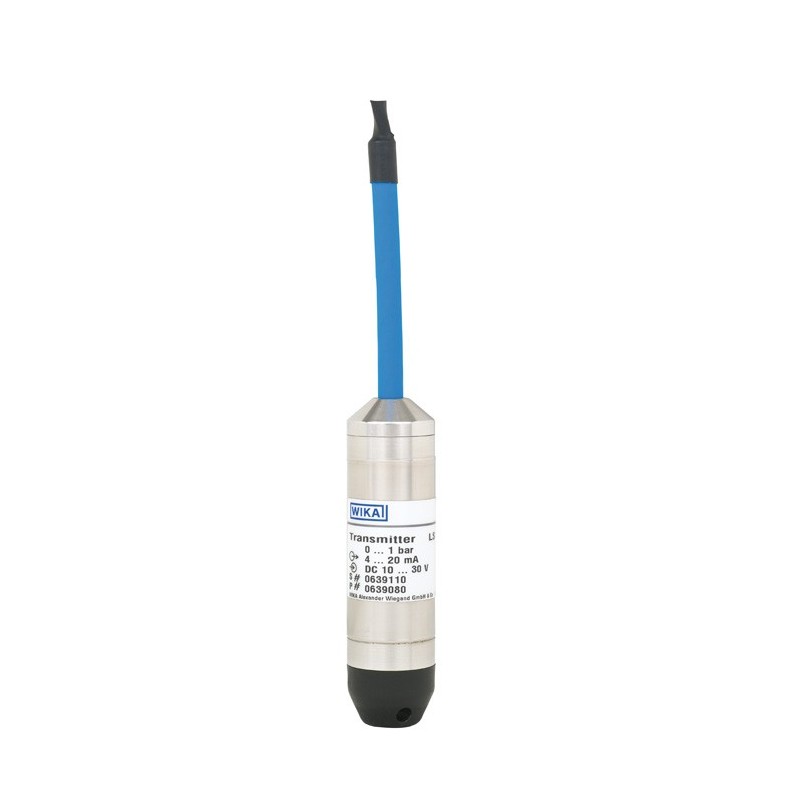

Model LS-10 Submersible pressure transmitter

New product

More info

Model LS-10

Submersible pressure transmitter

For level measurement, standard version


  • Level measurement in rivers and lakes
  • Level measurement in vessel and storage systems
  • Control of sewage lift and pumping stations
  • Monitoring of sewage, settling and stormwater retention basins

Special Features

  • Robust
  • Reliable
  • Economical


For simple measuring tasks
The model LS-10 submersible pressure transmitter has been optimised for simple measuring requirements in level measurement. It offers excellent quality, is cost-effective and reliable.

It has been designed to the current demands of the industry and has a 4 ... 20 mA output as standard, an accuracy of 0.5% and PUR cable. With IP 68 ingress protection, it is suitable for permanent level measurement up to 100 m water column.

Reliable and long-lasting
The submersible pressure transmitter features a hermetically-sealed and exceptionally robust stainless steel case. The proven, fully-welded construction ensures a long service life and permanent sealing.
